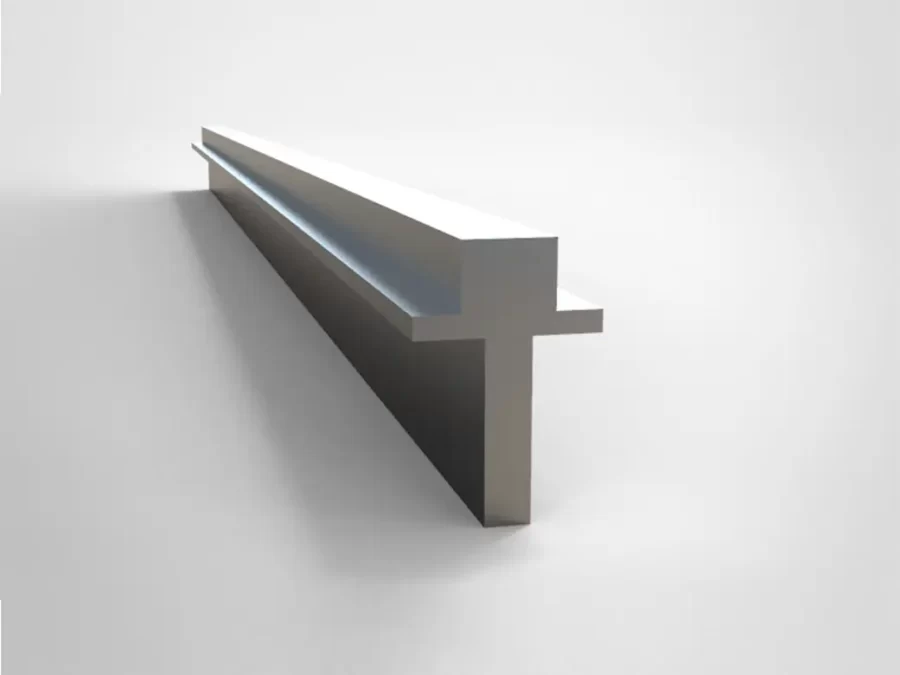

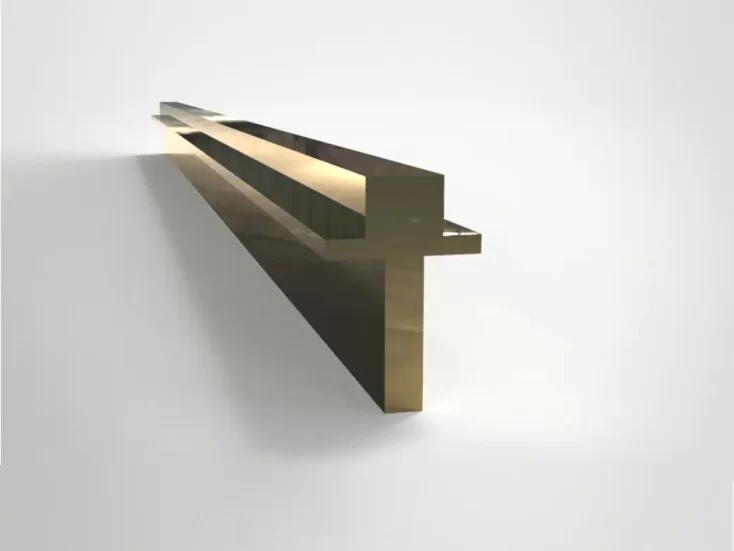

SMI501 Stair Insert – Designed in a simple but elegant style that integrates seamlessly leaving a minimal architectural finish – accentuating stair design. The SMI501 is developed to sit 4mm proud and is engineered with a cross design to eliminate the aluminum scratching and creating a high slip resistance.
With side flanges that ensure the Insert sits level in the sawcut, covers any small chipping, and adhesive spillage meaning it always has that final high-end appeal. With an anodized finish of either black, bronze, silver, or gold to suit the colour and contrast requirements and can be applied to certain curved stairs. The SM501 Stair Nosing is the perfect fit to amplify any feature stair design.
Key Benefits:
- Adds Aesthetic Value
- Protect Stair Treads
- Improve Safety
Anodising Options
Product Specs:

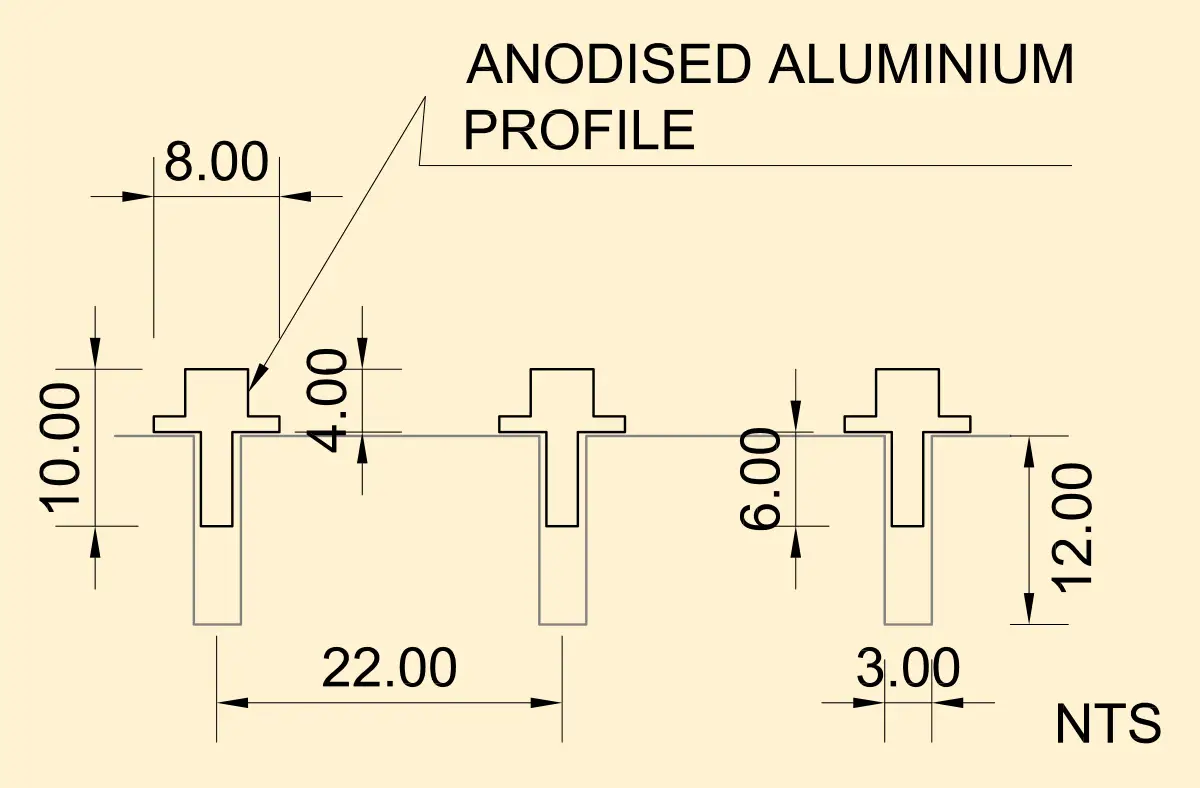

Design: Anodised Aluminium t Profile with flanges for smooth finish. / or covering chipping, ensuring sitting level, additional adhesive.

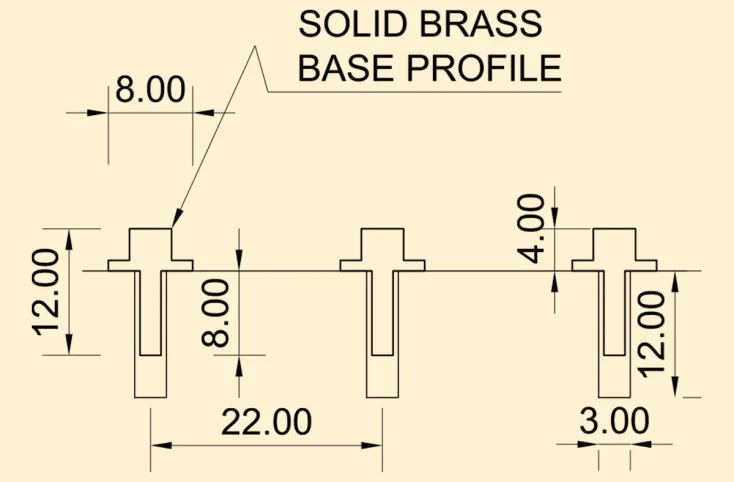

Application: 1st Insert 25mm from Tread Edge,
2nd/3rd Insert at 22mm Centres.
Product Dimensions: 8mm wide x 12mm high. Sits 4mm proud of substrate.
Rebate Sawcut Dimensions: 3mm wide x 12mm deep *If substrate is less than 24mm please contact Freedom Works.
Product Warranty: 5 Years
Installation Warranty: 1 Year
Anodising Colours: Black, Silver, Bronze & Gold
Code Compliance:
- NZBC D1/AS1 Accessibility and Mobility
- NZS 4121 Structural Design Requiring Stair Nosing and treads
- AS/NZS 4586:2013 Slip resistance classification of new pedestrian surface materials
Slip Resistance Rating: P5 Rated / Co-Efficient of Friction – 62
Sustainability: Declare Certified
Masterspecs Code: 6614FS
