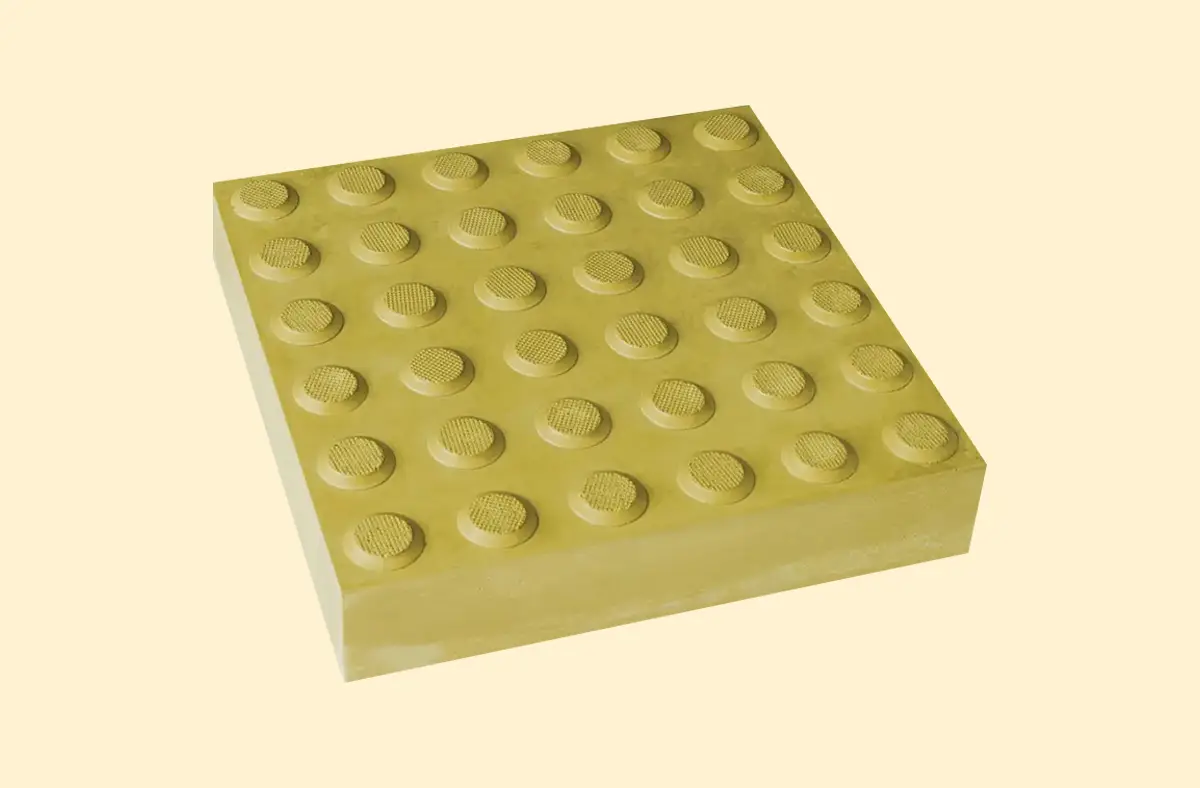

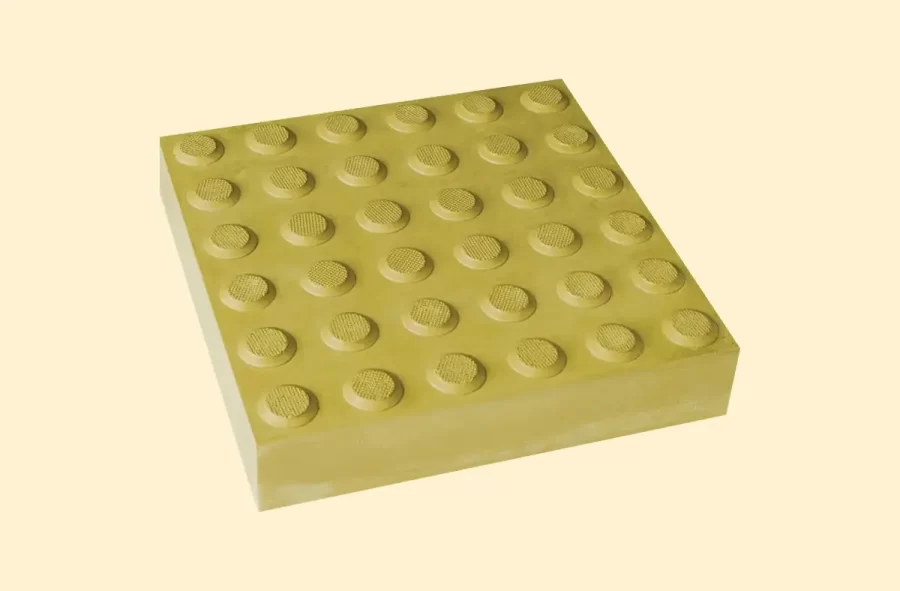

GMCPH60 Concrete Paver Warning Tactile Indicator

GMCPH60 Concrete Paver Hazard Tactile Ground Surface Indicator (TGSI)- A Concrete Paver Hazard / Warning tactile indicator, embedding into mortar and rebated against substrate finish for roading, civil works and foot paths.

Tactile warning to assist with finding orientation.

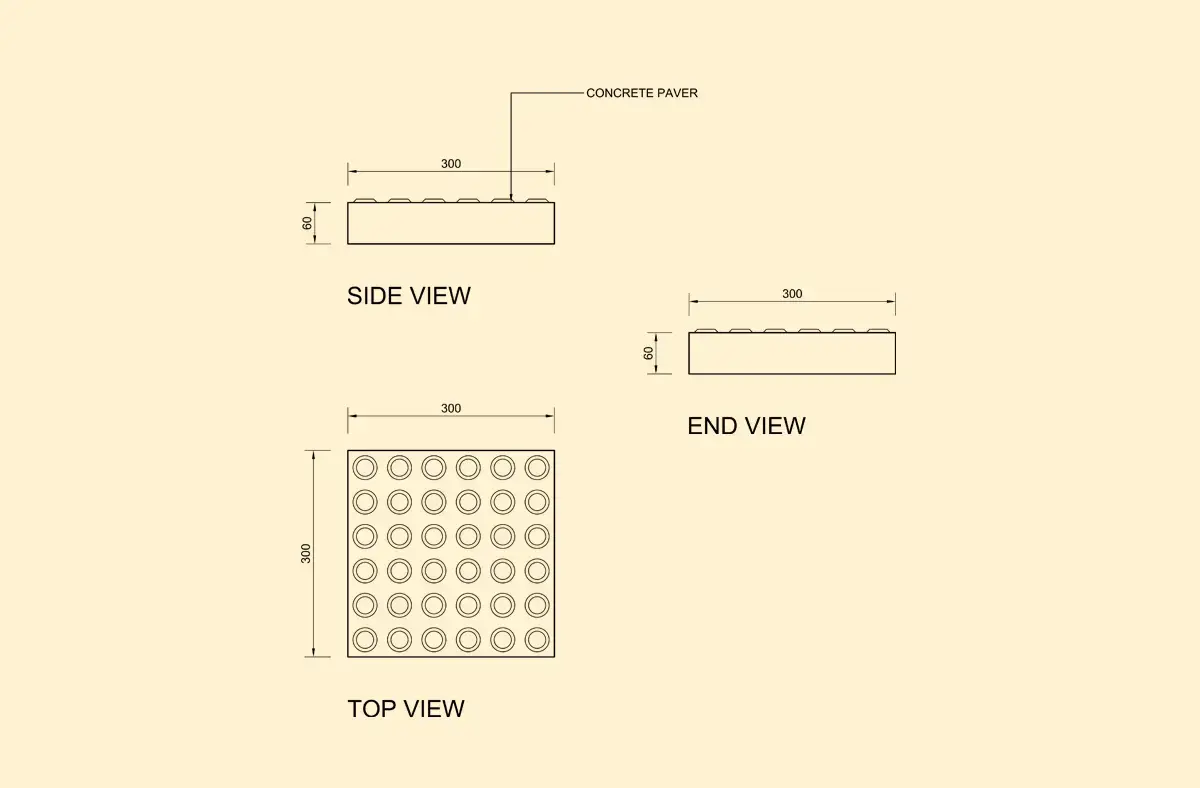

Technical Drawings & Documents
Product Data Sheet
Share:
  • Description
Description

GMCPH60 Guidemaster Concrete Paver Hazard Tactile - Primarily for the exterior environment, designed for accessibility to warn and guide the visually impaired of approaching hazards.

Warn the vision impaired of such warnings as:

  • Life threatening hazards where serious falls may occur, such as at railway platforms, wharves, vehicular driveways and exits from car parks, etc., which intersect or form access paths
  • To indicate that a point of importance has been reached, such as the location of a bus sign or tram stop or the location of a change of direction on a pedestrian crossing island or as wayfinding to signify the location of a change of direction while traveling
  • At the top and bottom of stairways and ramps warning of a change in level.
  • At pedestrian crossings to indicate the path of travel
Declare: Living Building Challenge Criteria Compliant

Product Specs:

Base: Minimum 50MPA high cement content giving it high compression and density strength, very durable, low porosity and high stain resistance.

Dimensions: 300 x 300 x 60mm thickness

Finish: Sealed or Unsealed. Sealed pavers have increased slip resistance, brighter and more durable colour.

Product Warranty: 2 Years

Code Compliance:

  • NZTA RTS14—Land Transport New Zealand— Guidelines for facilities for the blind and vision impaired
  • AS/NZS 1428.4.1:2009—Design for access and mobility, Part 4
    NZS4121:2001—Design for access and mobility—building and associated facilities
  • All slip resistance tests are done in accordance with AS/NZS4586:2004
  • Land Transport’s Pedestrian Planning and Design Guide
  • The Royal N.Z. Foundation for the Blind Design Guide Recommendations/Specifications

Luminance Test: Provides colour contrast. Integrated Discrete Tactiles must have 30% minimum luminance contrast to that of the surround substrate surface area.

Slip Resistance Rating: P5 Wet and DRY - SRV Value of 80

Masterspecs Code: Exterior 8281FG

REQUEST A SAMPLE | REQUEST ADDITIONAL SUPPORT
×

GMCPH60 Technical Drawings & Documents Form

Please complete the following form and your file's will download upon submission.

×

GMCPH60 Technical Data Sheet Form

Please complete the following form and your file's will download upon submission.

Related products

GMBD10 Solid Brass Directional Tactile Indicator

Tactile Indicators, Directional Tactile Indicators
Read more
Quick view

GMPS1002 Polyurethane Warning Tactile Indicator

Tactile Indicators, Stud Tactile Indicators
Read more
Quick view

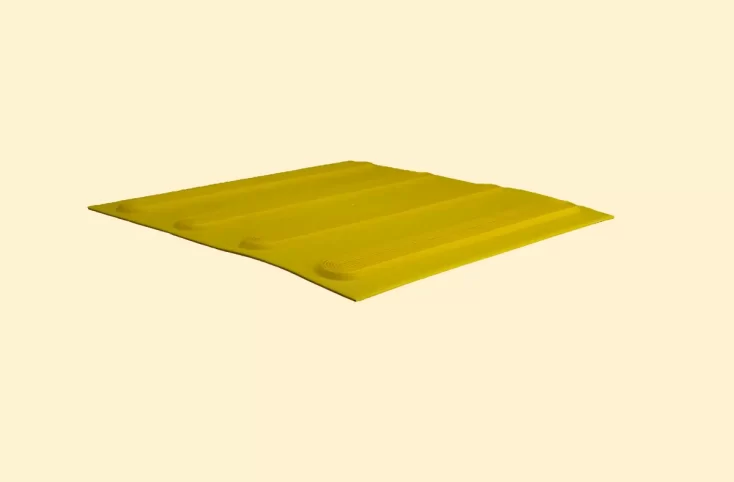

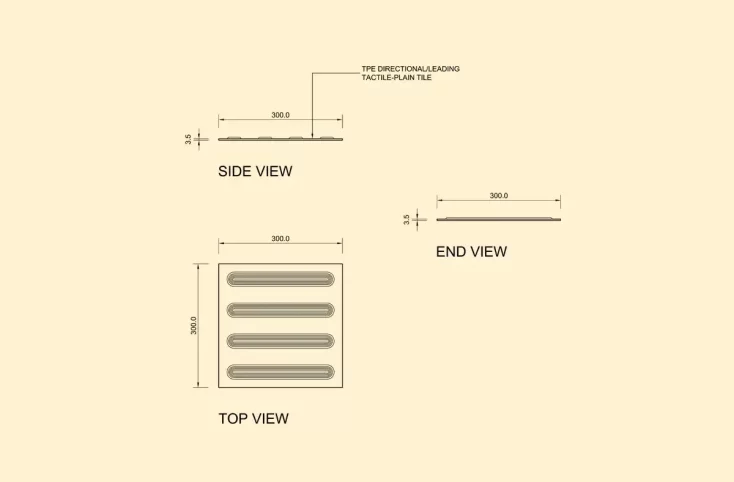

GMPTD4002 Plain Tile Directional Tactile Indicator
